Bi58Sn42 Sn Bi Solder Wire
Description

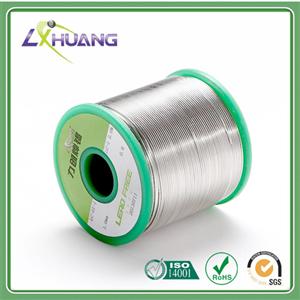

Our Sn42Bi58 solder wire is a rosin-cored and lead-free product. With low temperature and melting point, Sn-Bi solder wire can be applied in high-precision LED products. It is also adaptable to the soldering of heat-sensitive components of electronic products, as well as the soldering of both thermal overload protector and safety components.
Features
1. Its melting point is approximately138℃
2. The flux content is 2.0%.
3. Our company is able to produce no-clean and solid core solder wire.
4.The minimum diameter of our Sn Bisolder wire reaches0.5mm.
Parameters of Bi58Sn42 Low Temperature Solder
|
Alloy Composition |
Melting Point(℃) |
Specific Gravity |
Recommended Applications |
|
|
Solidus |
Liquidus |
|||
|
Sn-58Bi |
139 |
139 |
8.70 |
Manual Dip Soldering and Wave Soldering |
Ingredients of Low Temperature Sn-Bi Solder Wire
|
Element |
Sn |
Bi |
Pb |
Al |
Sb |
As |
Cu |
Fe |
Zn |
Cd |
Ag |
Ni |
In |
|
Content/% |
41.0-43.0 |
Remain |
0.05 |
0.005 |
0.05 |
0.03 |
0.08 |
0.01 |
0.003 |
0.002 |
0.05 |
0.01 |
0.05 |
Actually, this product is more difficult to be manufactured than other solder wires. But its consumption rate is over 5 times as high as that of the common solder wires. Only a few manufacturers are capable of supplying this Sn-Bi solder wire in current soldering industry. Our product has been sold toUnited States,South Korea, andChile, among other countries. Beyond that, we are looking for more agents on a global scale. Please don’t hesitate to contact us, if you show interest in our products.
